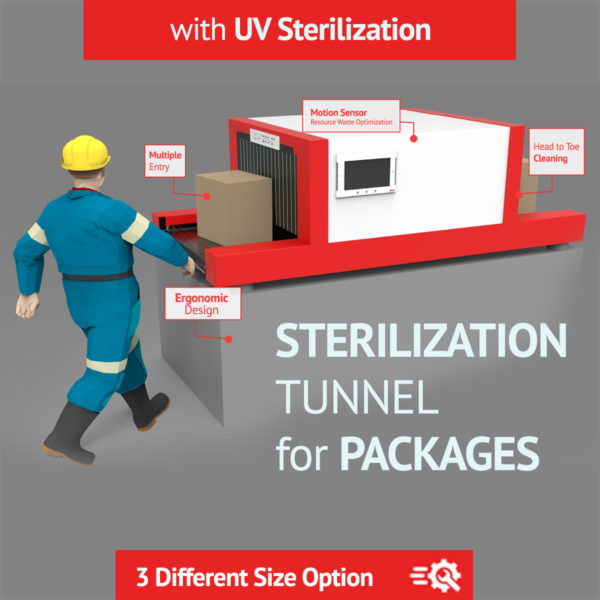

Sterilization Tunnel for Packages

• First of all packages to be sterilized is put by attendant to the tunnel entry.
• As soon as the sensors detect every package passing through the tunnel, the motion control detects and starts to operate UV sterilization.
• With the special structure, bottom surface is sterilized with UV ray.
• UV Sterilation keeps until package come to the end of the tunnel. Then, sterilization stops.

UV-900-ST

• Size: Length 2300 mm, Width 1200 mm, Height 900 mm
• Max Package Size: Length 1200 mm, Width 750 mm, Height 500 mm
• Tunnel Conveyor Speed: 0,1 – 1 m/min adjustable speed

• Max Package Weight: 300 kg


UV-1200-ST

• Size: Length 2300 mm, Width 1200 mm, Height 1200 mm
• Max Package Size: Length 1200 mm, Width 750 mm, Height 750 mm
• Tunnel Conveyor Speed: 0,1 – 1 m/min adjustable speed

• Max Package Weight: 500 kg

UV-1500-ST

• Size: Length 3500 mm, Width 2000 mm, Height 2000 mm
• Max Package Size: Length 2000 mm, Width 1800 mm, Height 1500 mm
• Tunnel Conveyor Speed: 0,1 – 1 m/min adjustable speed

• Max Package Weight: 750 kg

Please, ask for price and shipping details.
